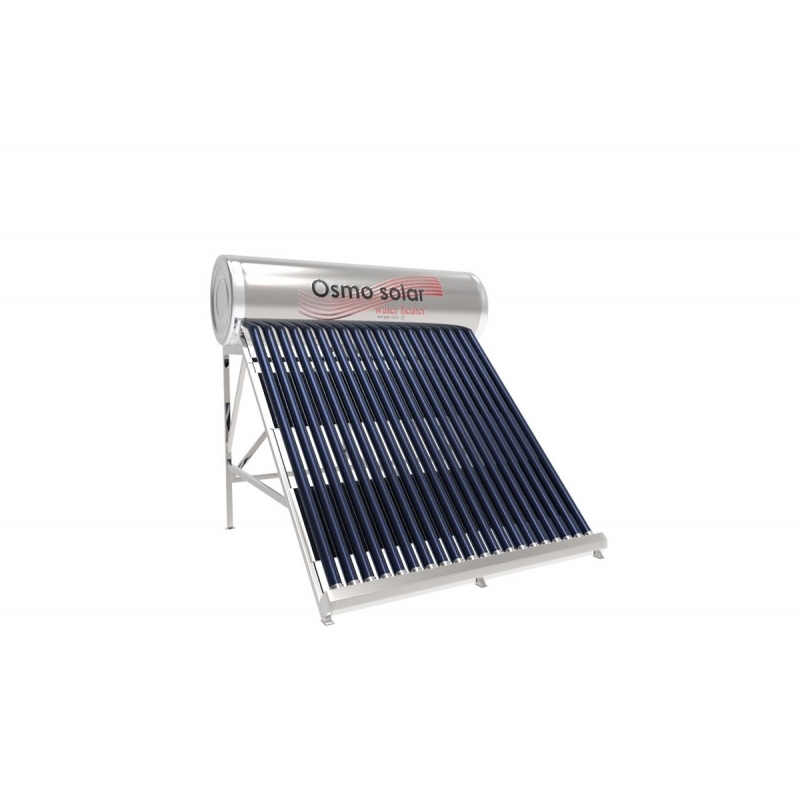

Osmo Solar 360 Liter Osmo-30T Solar Water Heating System

Specification

• Brand: OSMO SOLAR
• Model: Osmo-30T
• Color: Silver
• Capacity: 360 Liter
• Solar Water Heating System
• 30 Tubes/Electric Heating Rod
• Tube length: 1899mm
• Outer tube diameter: 58mm
• Inner tube diameter: 47mm
• Galss thickness: 1.6mm
• Thermal expansion: 3.3*10-6°c
• Absorptivity: ³ 93%
• Coating: AL- N- AL
• Inner Tank: SUS 304 -2B with 0.5 mm
• Outer Tank: Stainless steel with 0.4mm
• Frame: Stainless steel with 1.5 mm/1.2 mm
• Insulation: 50mm of high density polyurethane foam
• Delivery and Installation Free inside Kathmandu, Valley
• 10 Years Warranty (3 Years Replacement and 7 Year Service Warranty)

Safety Precaution
Solar water heater/collector should always be kept and placed out of reach of infants and children.
Do not touch or put cold water inside the vacuum tubers if the tubes have been exposed to sun without water inside.
The water temperature of the solar water heater can be very high, so please adjust the mixing valve to a suitable position and test water before bathing. Hot water above 50°c can cause scalding.
Maintenance
Regularly inspect the solar water heater tank to make sure its not damaged.
Also check for any rusting in the plumbing lines. Do necessary repairs using the authorized service provider.
Blockage or damage to the vent pipes can created severe damage to the solar water heater. once this situation happen , close the cold water inlet and hot water outlet valves immediately and call the authorized service provider for rectification of the problem.
Do not connect any type of pressure relief device to the vent pipe of this water heater.
